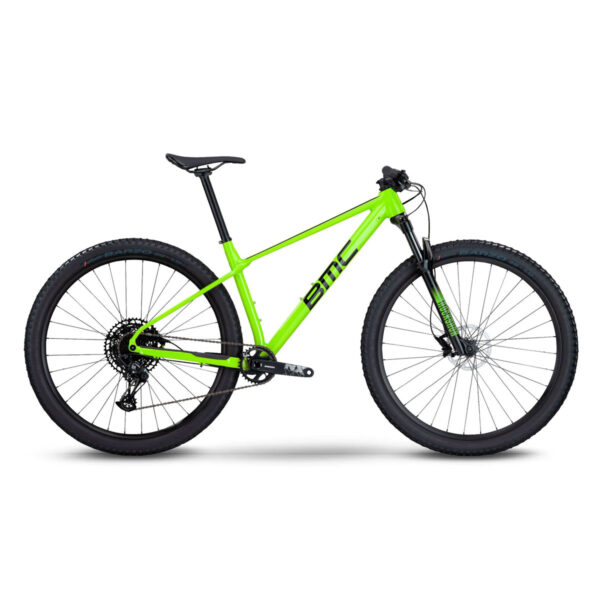

Twostroke AL One

Consulta la disponibilidad con nosotros

Consulta la disponibilidad con nosotros

Detalles Técnicos

  • MARCA

    BMC

  • SPEC

    NX Eagle

  • CUADRO

    Twostroke AL Premium Aluminium, Hydroformed, Smoothwelded
    • Internal Cable Routing
    • BSA Threaded Bottom Bracket
    • Post Mount Disc

  • HORQUILLA

    Rockshox Recon RL

  • VELOCIDADES

    1×12

  • VOLANTE

    SRAM NX Eagle 32T

  • CASSETTE

    SRAM NX Eagle 11-50T

  • CADENA

    SRAM SX Eagle

  • DESVIADOR TRASERO

    SRAM NX Eagle

  • MANILLA CAMBIO

    SRAM SX Eagle

  • FRENOS

    SHIMANO Deore BR-M6100 / SHIMANO SM-RT54 Rotors (160/160 S-M, 180/160 L-XL)

  • MANILLAR

    BMC MFB03 Alloy 750mm

  • TEE

    Forged 6061 Alloy

  • TUBO ASIENTO

    BMC MSP03 – 31,6mm – 0mm Offset

  • ASIENTO

    Velo VL-1831

  • MAZAS

    SHIMANO MT400

  • RUEDAS

    SHL28OS, 25mm Inner Width

  • NEUMÁTICOS

    Vittoria Barzo 2.25

Geometria bibicleta
TALLA S M L XL
Rider Height CM 162-172 170-180 178-188 >188
Top Tube MM (tt) 597 618 638 658
Wheelbase MM (wb) 1112.5 1135 1161 1185
Seat Tube Angle (sa) 75.0 75.0 75.0 75.0
Seatpost Length MM 380 430 430 430
Stack MM 588 598 608 623
Trail MM (trail) 109 109 109 109
Rear Center MM (rc) 425 67.0 67.0 425
Reach MM (reach) 422.5 445 465 485
Head Tube MM (ht) 87 93.5 106 122.5
Head Angle (ha) 67.0 67.0 67.0 67.0
BB Drop MM (drop) 64 64 64 64
Stem Length MM 50 60 60 70
Seat Tube MM (st) 410 440 480 510
Stem Angle -5 -5 -5 -5
Crank Length MM 170 175 175 175
Fork Rake MM (fr) 44 44 44 44
Front Center MM (fc) 696 715 741 767
Fork Length MM (fl) 505 505 505 505
Bar Rise MM 4 4 4 4
Bar Width MM 760 760 760 760
Backsweep 8 8 8 8
Standover Height mm 725 730 735 750
